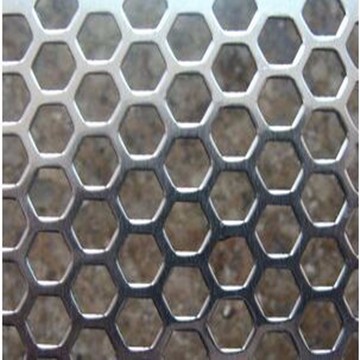

Hexagonal Perforated Metal is made of metal plates matching punching die in different sizes
of aperture, forming into mesh rolls or mesh sheets with hexagonal
holes by CNC punch pressing, cutting, slicing, leveling, grease,
deburring,surface treatment and other series of processes.
Hexagonal hole perforated metal belongs to new materials in the
decoration industry, for its own unique properties, the use of
decorative industries increases year by year. Hexagonal hole
perforated metal has good features of beautiful appearance, sturdy
overall structure, several times higher tensile strength than
diamond hole perforated metal, corrosion resistance, light weight
per square meter, ventilation, translucent, sound-absorbing, high
toughness, easy to install and low cost. We producing hexagonal
hole perforated metal in various kinds of specification by
different combination of material, hole pitch and open area.
Hexagonal hole perforated metal is widely used in ventilation,
screen filter and architectural decoration fields.
Material: Stainless Steel, Copper, Aluminum, Carbon Steel, Plain Steel,
Galvanized Steel, etc.
| Stainless Steel | 201, 202, 304, 316, 321, 410, 430 |
| Copper | brass, pure copper, phosphor bronze |
| Aluminum | 1050, 1060, 1100, 5052, 5056 |
| Carbon Steel | High Carbon Steel, Mild Carbon Steel, Low Carbon Steel |
Features:
Timeless design;
Suitable for many industries;
Lightweight;
Low maintenance.
Holes Shape: Hexagonal Hole
Applications:
Hexagonal perforated sheets are widely used in architectural
applications for its beautiful appearance.They are available from
stock into two hole sizes in a staggered pattern.
Specifications:
Hole Size: 4.5mm to12.7mm
Pitch: 5.0mm to 14.3mm
Thickness: 0.5mm-2.5mm
Roll Width: 1m, 1.22m, 1.5m to 4m
Roll Length 15 m, 30 m to 60 m
Panel Width: 1m, 1.22m to 2m
Panel Length: 1m, 1.5 m, 2m to 10m
Hole Size(H) (mm) | Pitch(P) (mm) | Open Area (%) |
| 4.5 | 5.0 | 81.0 |
| 6.0 | 6.7 | 80.2 |
| 6.0 | 7.5 | 64.0 |
| 6.3 | 7.1 | 80.0 |
| 6.3 | 12.7 | 25.0 |
| 11.5 | 12.7 | 81.0 |
| 11.5 | 22.2 | 27.0 |
| 12.7 | 14.3 | 79.0 |
